In this episode we introduced drilling machine and Daria learns how to make a hole in a work object.

Below is the specification of the drilling machine:

1- Drilling Machine: Güde

Güde specification:

• V-belt drive, speed setting by step pulley
• V-belt tensioning system
• ball bearing drill spindle
• gear chuck 3 -16 mm
• drill bit B16
• drilling table size 164 x 162 mm
• drilling table height adjustable, +/- 45 ° inclinable and 360 ° swiveling
• adjustable drilling depth stop for precise drilling
• max. Distance of drill chuck to the drilling table 175 mm
• max. Distance of chuck to stand 260 mm
• stand size 190 x 300 mm with slots for vise fixing
• foldable chip protection
• ON / OFF switch with zero voltage tripping
• Position laser for precise drilling results
• Includes vice 65mm

Technical information:

• Rated voltage: 230 V
• Frequency: 50 Hz
• Operating mode: S2 15min
• Protection class: I
• Power P1: 550 W
• Engine speed: 550-2500 1/min
• Spindle: 50 mm
• Number of stages: 5
• Outreach: 104 mm
• Max. Chuck capacity: 16 mm
• Min. chuck capacity: 3 mm
• Taper: 16 B
• Table width: 164 mm
• Tray depht: 162 mm
• Footplate BxT: 190×298 mm
• Column diameter: 46 mm
• Dimension LxWxH: 420x209x580 mm
• Weight: 13.5 kg

:Its also Important to select a proper bit for your application. Three different type of bits is introduced:

1-Construction Bit

• Material: tungsten carbide tip
• Features: high hardness of the carbide tip with excellent performance
• Application: specialised in drilling for cement, brick and concrete constructions
• Packaging – Metal housing, portable and easy for daily storage

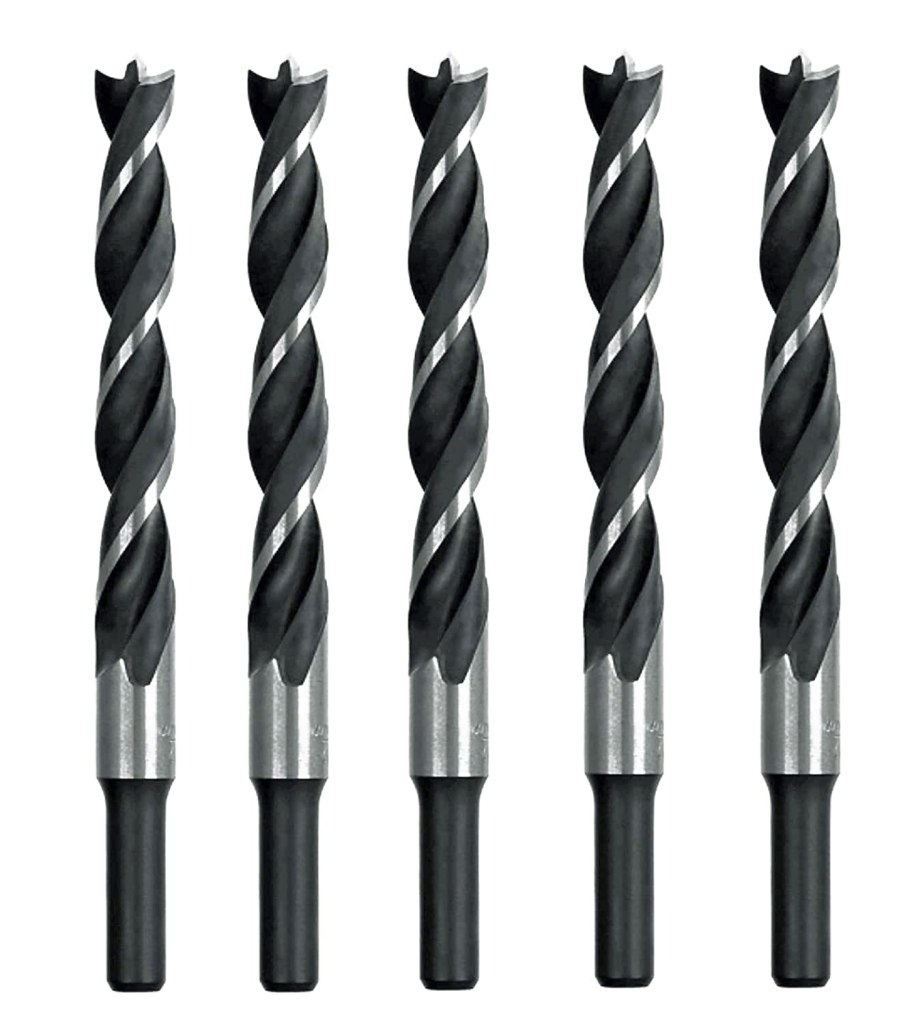

2- Wood bits:

• Designed to work for all wood projects, especially suitable for furniture making, cabinets and dowels where an accurate hole is required
• Hardened and tempered chrome vanadium steel for longer life, use in hand drills, electric drills, drills and lathes.
• Use in hand drills, electric drills, drills and lathes
• The tip allows for easy positioning and accurate starts, extra wide grooves ensure fast chip removal with less effort.
• Special brad point tip bites into the wood, prevents the drill from skipping or running without the punch being centred. Ideal for use with oak, maple, cherry and other hard woods

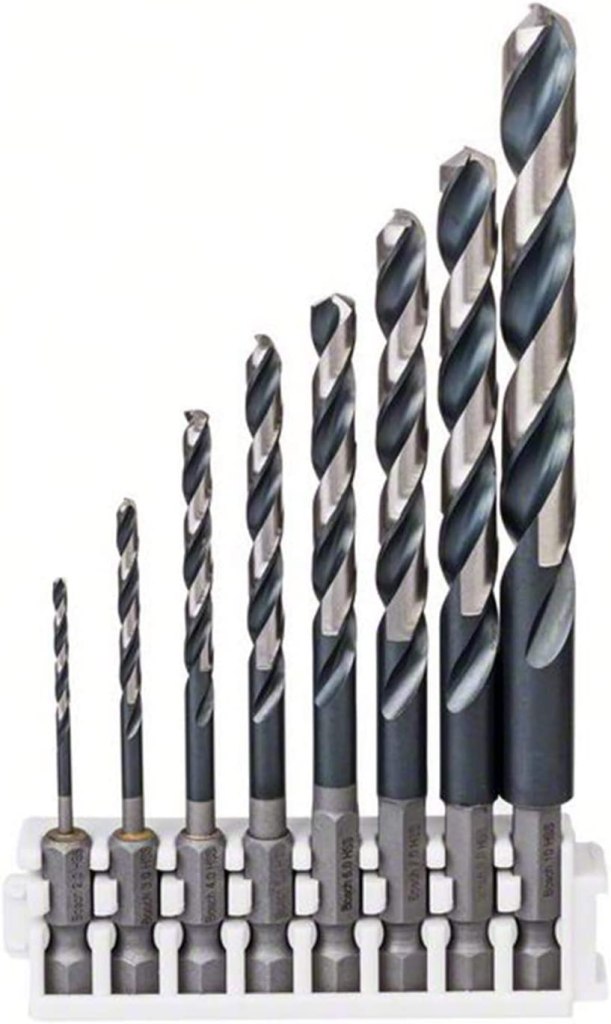

3- Metal bits:

• Extremely robust: The manufacture of solid metal results in an extremely robust body of the Impact Control HSS twist drill
• High durability: Precision-ground spiral flute for reduced wear when drilling. The use of e.g. B. Oil as a coolant, also extends the life of the twist drill
• Precise work: Active cutting with low contact pressure and perfect centering thanks to the split-point drill bit
• Areas of application: Ideally suited for use in alloyed and unalloyed steel, cast steel, cast iron, sintered iron, non-ferrous metals, sheet metal and plastic
• Compatibility: Suitable for all impact drills, drill drivers and drill stands with a hexagonal shank
