As i have tried to explain in This Episode, The Application field of EVS vision sesnors are quite vast and this sensor can be applied on many applications where there is lack of illumination or the threshold of the light intensity on the vision sensor pixels needs to be adjusted in order to triger the signal. therefore you can use this type of sensor when your object is moving or the environment is dynamic. Unlike the traditional CMOS sensors which are have statics threshold, EVS have a dynamic defined signal generating thresholds. Therfore recognition of Objects edges even in dark areas are much easier that the counter parts. Thgis can lead to detect objects with out strong illumination on the conveying belts for example. Or detecting the pedestarion on the foot in the streets using Autonomous Vehicles or Applying it on fast and small drones for higher manuvaribility to avoid obstacles in darker areas and etc.

The rate of data transfer also significantly reduces and the speed of processing increases. Its important to mention the lowering the amount of power to process the data using EVS cameras and low sensitivity to to the lack of environment illumination.

The way that these Sensors work is very similar to the human eyes therefor its called neuromorphic Cameras or vision sensors.

Is there any EVS available in the market? Yes!

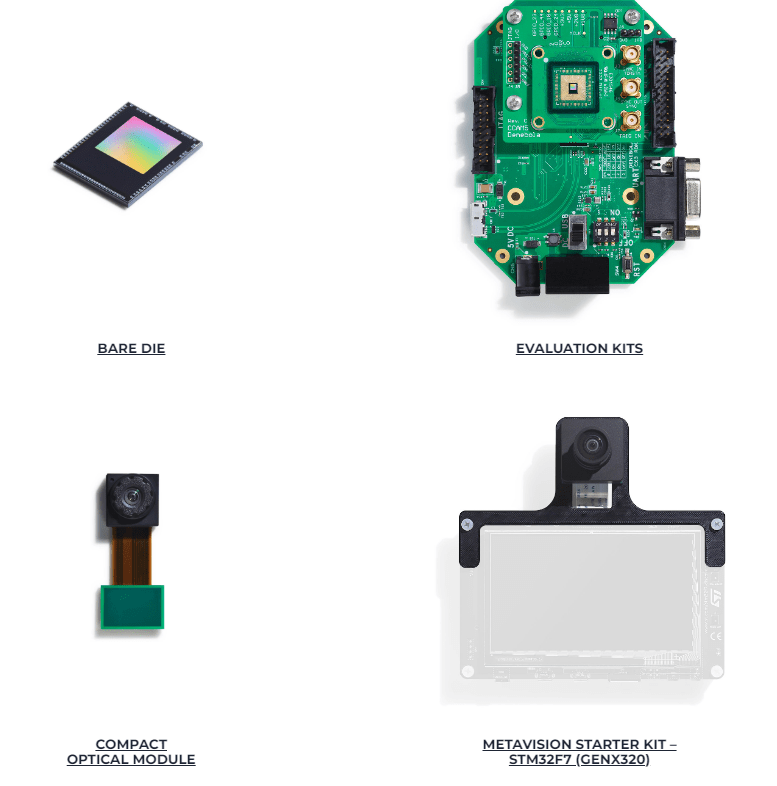

1- GENX320

KEY FEATURES

Resolution (px) 320×320
Ultra-low power mode (down to 36μW)
Optical format: 1/5”
Pixel latency @1k lux (μs) <150
Dynamic Range (dB) >120
Nominal contrast threshold (%) 25
Pixel size (μm) 6.3 x 6.3
Embedded features: Anti-flicker filtering (AFK) + Event-rate Controller (ERC) + Spatio-temporal Contrast filter (STC)

TYPICAL APPLICATIONS

AR/VR/XR: Eye tracking • Gesture recognition
IoT: AI on the edge and Machine Learning, Always on cameras
Healthcare (privacy) cameras
Wearables
Smart Home

Its still early for this Technology to get into devices, however soon it will be more popular due to its capabilities and for sure more companies will try to manufacture such sensors.
